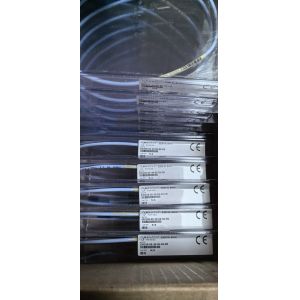

3300 XL 8 mm Proximity Transducer System
330101-00-05-10-02-00 330105-02-12-10-02-CN 330106-05-30-05-02-CN
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1 , and
One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional
to the distance between the probe tip and the observed conductive
surface and can measure both static (position) and dynamic
(vibration) values. The system’s primary applications are vibration
and position measurements on fluid-film bearing machines, as well
as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in
our eddy current proximity transducer systems. The standard 3300 XL
8 mm 5-meter system also fully complies with the American Petroleum
Institute’s (API) 670 Standard for mechanical configuration, linear
range, accuracy, and temperature stability. All 3300 XL 8 mm
proximity transducer systems provide this level of performance and
support complete interchangeability of probes, extension cables,
and Proximitor sensors, eliminating the need to match or bench
calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward
compatible and interchangeable4 with other nonXL 3300 series 5 mm
and 8 mm transducer system components5. This compatibility includes
the 3300 5 mm probe, for applications in which an 8 mm probe is too
large for the available mounting space6,7.
Ordering Information
3300 XL 8 mm Proximity Probes:
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option | Order in increments of 0.1 in. Length configurations: Maximum
unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in. |
B: Overall Case Length Option | Order in increments of 0.1 in. Standard thread configurations:
Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example:
2 4 = 2.4 in. |
C: Total Length Option |
05 | 0.5 meter (1.6 feet) |
10 | 1.0 meter (3.3 feet) |
15 | 1.5 meter (4.9 feet) |
20 | 2.0 meters (6.6 feet) |
30 | 3.0 meters (9.8 feet) |
50 | 5.0 meters (16.4 feet) |
90 | 9.0 meters (29.5 feet) |
D: Connector and Cable-Type Option |
01 | Miniature coaxial ClickLoc connector with connector protector,
standard cable |
02 | Miniature coaxial ClickLoc connector, standard cable |
11 | Miniature coaxial ClickLoc connector with connector protector,
FluidLoc cable |
12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
E: Agency Approval Option |
00 | Not required |
05 | CSA, ATEX, IECEx Approvals |
3300 XL 8 mm Proximity Probes, Metric:
330103 3300 XL 8 mm Probe, M10 x 1 thread, without armor (2)
330104 3300 XL 8 mm Probe, M10 x 1 thread, with armor (2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option | Order in increments of 10 mm Length configurations: Maximum
unthreaded length: 230 mm Minimum unthreaded length: 0 mm Example:
0 6 = 60 mm |
B: Overall Case Length Option | Order in increments of 10 mm Metric thread configurations: Maximum
case length: 250 mm Minimum case length: 20 mm Example: 0 6 = 60 mm |
C: Total Length Option |
05 | 0.5 meter (1.6 feet) |
10 | 1.0 meter (3.3 feet) |
15 | 1.5 meter (4.9 feet) |
20 | 2.0 meters (6.6 feet) |
50 | 5.0 meters (16.4 feet) |
90 | 9.0 meters (29.5 feet) |
D: Connector and Cable-Type Option |
01 | Miniature coaxial ClickLoc connector with connector protector,
standard cable |
02 | Miniature coaxial ClickLoc connector, standard cable |
11 | Miniature coaxial ClickLoc connector with connector protector,
FluidLoc cable |
12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
E: Agency Approval Option |
00 | Not required |
05 | CSA, ATEX, IECEx Approvals |
3300 XL 8 mm Reverse Mount Probes
330105-02-12-CC-DD-EE3/8-24 UNF threads(2)
330106-05-30-CC-DD-EE M10 x 1 threads(2)
C: Total Length Option |
05 | 0.5 meter (1.6 feet) |
10 | 1.0 meter (3.3 feet) |
15 | 1.5 meter (4.9 feet) |
20 | 2.0 meters (6.6 feet) |
50 | 5.0 meters (16.4 feet) |
90 | 9.0 meters (29.5 feet) |
D: Connector and Cable-Type Option |
02 | Miniature ClickLoc coaxial connector |
12 | Miniature ClickLoc coaxial connector , FluidLoc cable |
E: Agency Approval Option |
00 | Not required |
05 | CSA, ATEX, IECEx Approvals |
